APPAREL Automatic Feeder Sofa Fabric Solvent Glue Dot Transfer 1800mm Lamination Machine

Name: APPAREL Automatic Feeder Sofa Fabric Solvent Glue Dot Transfer 1800mm Lamination Machine
Brand: GAOQI
Price: 29 USD

China APPAREL Automatic Feeder Sofa Fabric Solvent Glue Dot Transfer 1800mm Lamination Machine factory

Type : Laminating Machine

Applicable Industries : Garment Shops, Manufacturing Plant

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition : New

Application : APPAREL, Textiles

Packaging Type : Film

Packaging Material : Plastic

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V/50HZ/3P

Place of Origin : Jiangsu, China

Brand Name : GAOQI

Weight : 12000 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Heating Method : Electric heating / natural gas heating

HEATING DRUM SIZE : 1500*1800

OVERALL POWER : 50KW

COATING METHOD : Dot transfer coating

usage : sofa fabric

Keywords : sofa fabric laminating machine

Price : $29,800.00/sets >=1 sets

MOQ : 1 PC

Contact Now

APPAREL Automatic Feeder Sofa Fabric Solvent Glue Dot Transfer 1800mm Lamination Machine

Product
AUTOMATIC FEEDER SOFA FABRIC SOLVENT GLUE DOT TRANSFER LAMINATION MACHINE
It transfer the oil glue onto the fabric in dot form then finish the laminating. Low investment, high fastness, high capacity,less workers need.

Features:
1. The machine has been upgraded on the basis of conventional glue dot compound machine, such as automatic rectification,automatic stripping, automatic centering, automatic opening and automatic blowing waste edge. The composite material has the advantages of uniform coating, complex formation, no stretching deformation, no foaming, no wrinkling, softness, excellent air permeability, neat winding, etc.. 2. It is suitable for many kinds of composite materials. Especially for coating fabric and fabric, fabric and double or four sides stretch knitted fabric, non-woven fabric and leather, sponge and flannelette, sponge and leather; 3. Suitable configuration can be selected according to different materials for winding and unwinding; 4. According to the characteristics of different materials, parts can be increased or reduced; 5.Suitable for water-soluble and solvent based adhesive coating compound, realize one machine with multifunction. 6. The amount of glue and gluing patterns can be adjusted according to the material and actual needs. 7. The heating of the drum can be heated by electric, natural gas or thermal oil. 8. The width of the machine roll surface can be specified according to the maximum width of the actual material. 9. The whole system can use intelligent PLC program, touch screen or mechanical to operate control.

Main technical parameters:

SPECIFICATION	GQ-Ø1500*1800
MAX. PRODUCTION WIDTH:	1600mm
ROLLER SURFACE WIDTH:	1800mm
HEATING DRUM SIZE:	Ø1500*1800
HEATING MODE:	Electric heating / natural gas heating
COATING METHOD:	Dot transfer coating
DIMENSION(LXWXH)	17500MMx2350MMx3200mm

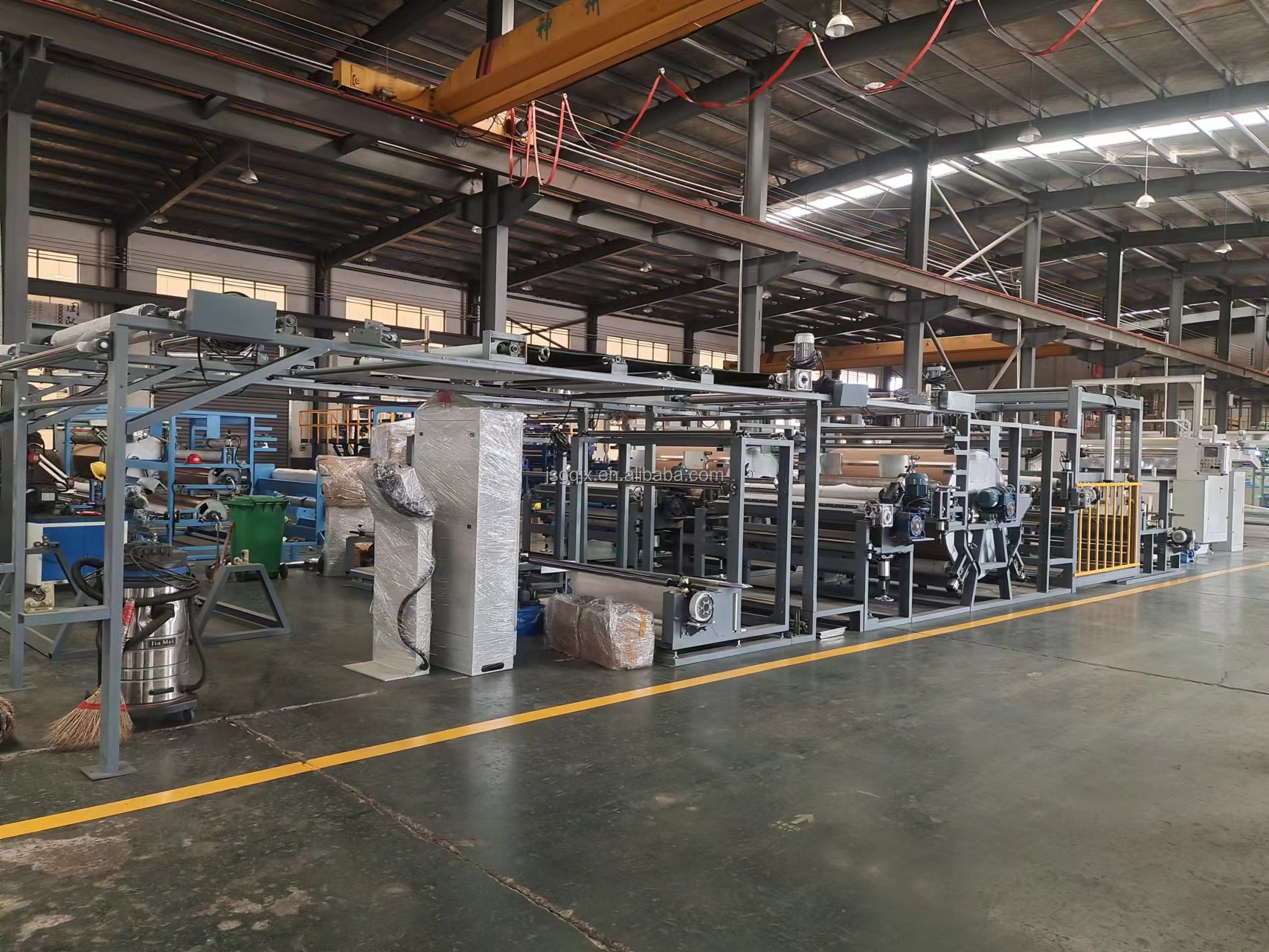

APPAREL Automatic Feeder Sofa Fabric Solvent Glue Dot Transfer 1800mm Lamination Machine Images
